T - GRID SYSTEM


Type A (Standard)
24mm
Type B (Regular)
24mm & 24 Select
Slim Line
15mm & 15mm Select
Silhouette
Main Runner
38x24x3600
33x24x3600
33x15x3600
33x15x3600
Cross Tee
28x24x1200
26x24x1200
26x15x1200
33x15x1200
Cross Tee
28x24x600
26x24x600
26x15x600
33x15x600
Wall Angle 0.4mm
24x24x3050
24x24x3050
15x15x3050
15x15x3050

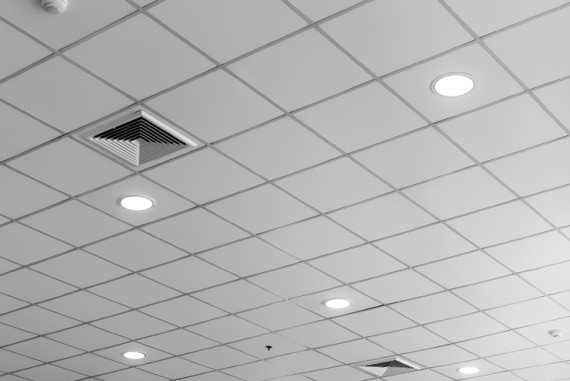

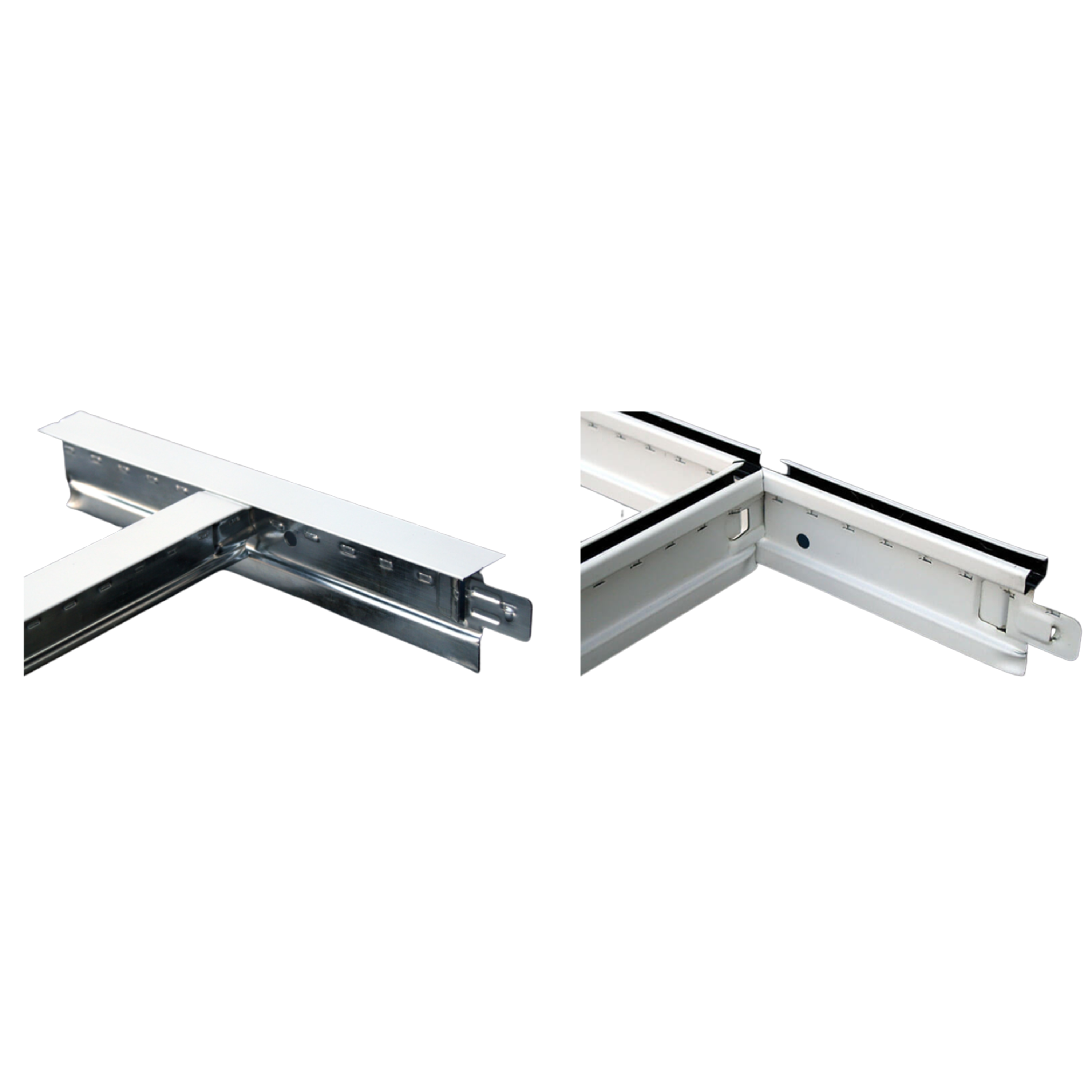

               T - Grid System Tee Grid System is made from Hot dip galvanized & pre-painted steel and This is the most convenient ceiling system in terms of installation, repair – maintenance.

Specialties for T-Grid System:

  • Steel material is processed by pre-painted hot dip galvanized
  • Zinc Mass Coating is 120/180 gm/m2 to avoid the rusting of steel.
  • The Material is processed with 20-micron polyester paint on steel.
  • This is the most convenient ceiling system in terms of installation, repair
  • Load bearing capacity when the span is 1.2 meter, supported with hanger wire from roof for type A is 12.05 kg/m2 and for type B is 8.45 kg/m2
  • Eco-Friendly: Promotes sustainable energy solutions.

Here is the extracted text from the image:

METAL TILES

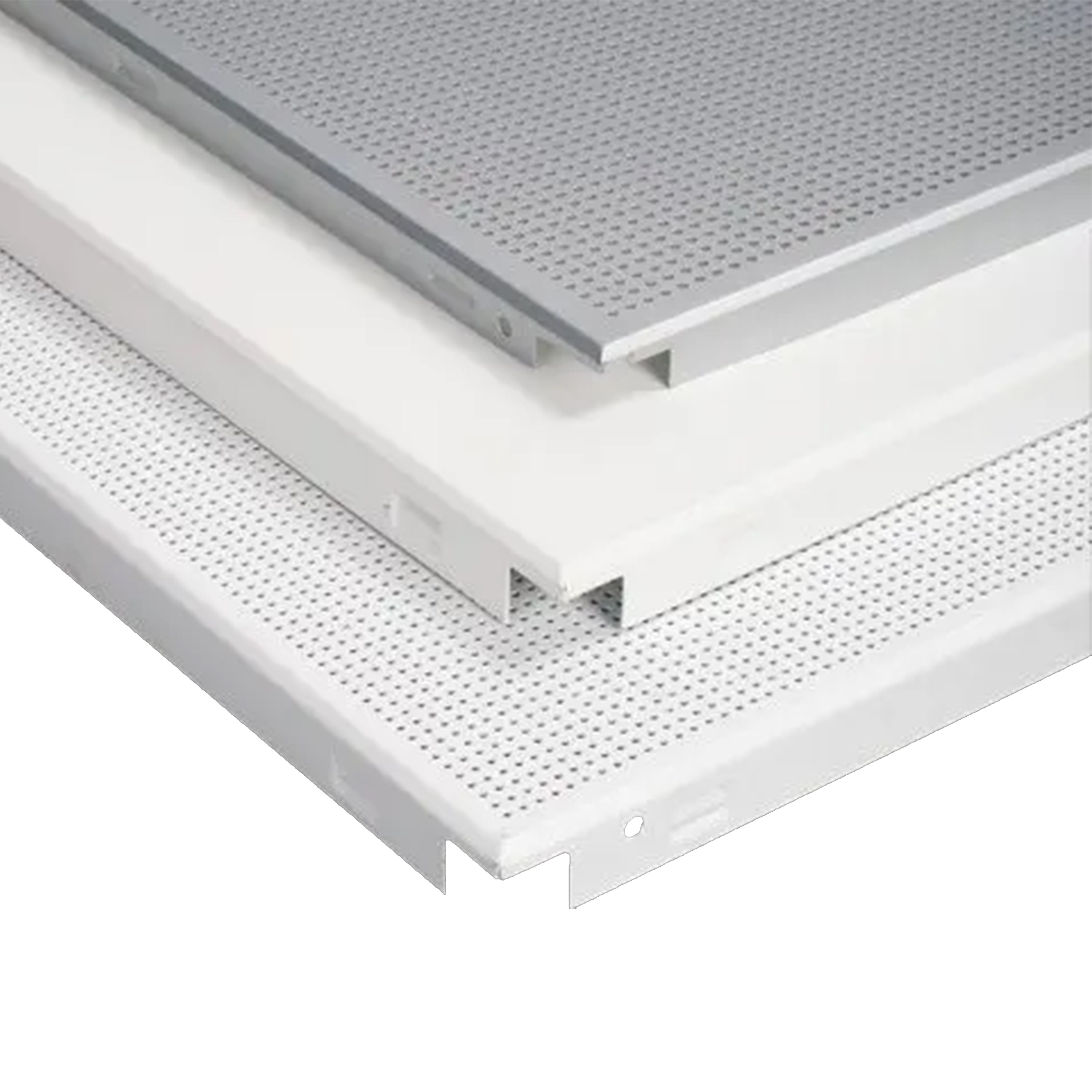

Lay-In Plain / Perforated Tiles

Lay-in false Ceiling System with steel/aluminium tile 595 mm X 595 mm is manufactured out of 0.50 mm thick polyester coil coated galvanized steel 80/120/180 gsm zinc coating (As per IS:277). Coil coated steel tile (PPGI) has 20-micron polyester coated finish and back coat of 5-micron alkyd primer.

Aluminium powder coated 0.7mm with 60 microns polyester paint in AA5050, AA3105 or AA1050 aluminium alloy. These tiles can have square or beveled edges. All tiles are available in 2.5mm 2.3mm and 1.8mm perforation patterns

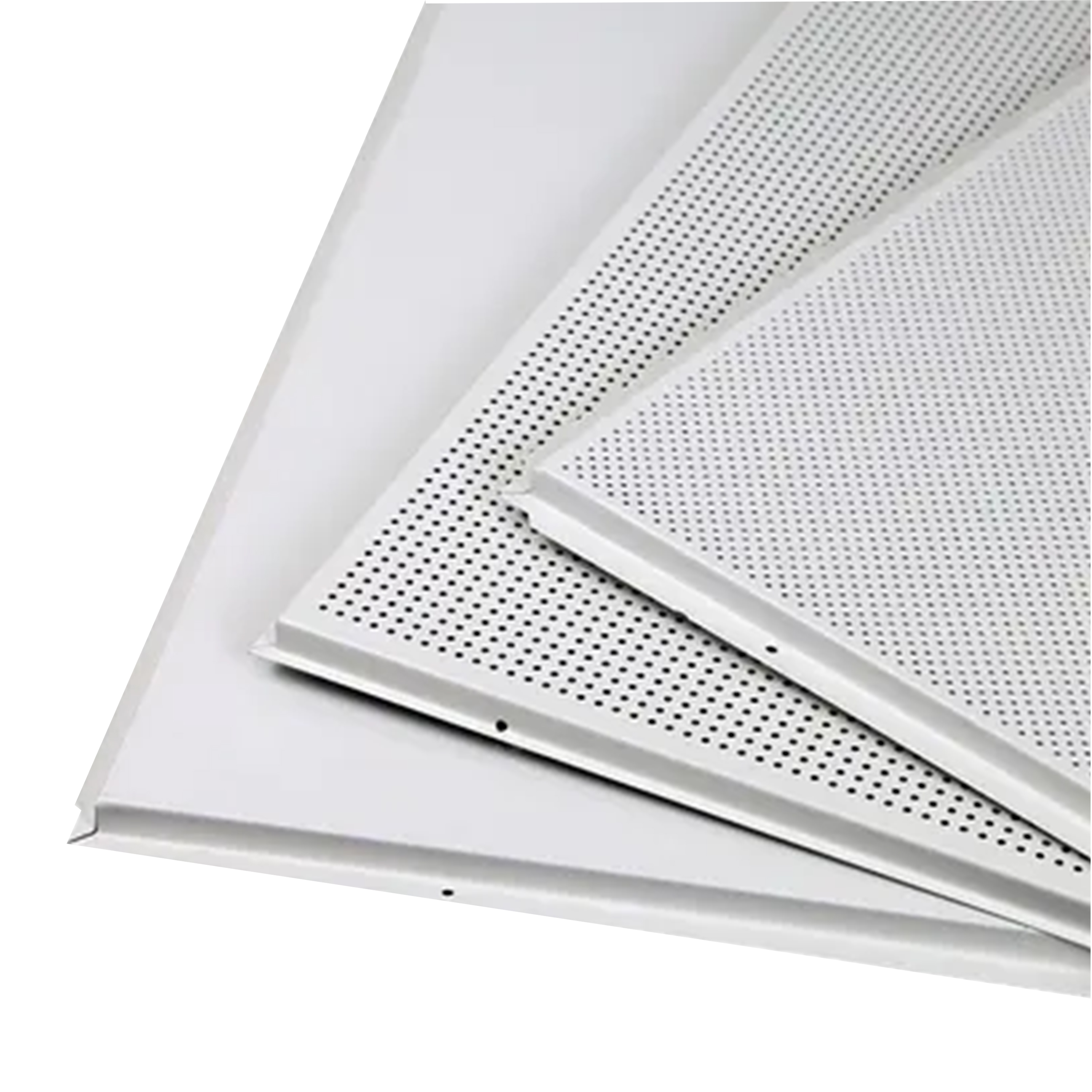

Clip In Plain / Perforated Tile

Clip-in false ceiling system with steel tile (600 mm x 600 mm) is manufactured out of 0.50 mm coated galvanized steel (80/120/180 gsm) total zinc coating on both sides. These tiles can have square or beveled edges

It is available in matt finish on the exposed side and a primer coating on the back. Optionally, they can be coil coated / powder Coated in different standard color shades. The Coil coated tile has 20- micron polyester coated finish and back coat of 5-micron alkyd primer. The rigid suspension system consists of rows of 0.5 mm galvanized steel clip-in profiles installed at 600 mm c/c spacing to support the tiles.

All tiles are available in 2.5mm 2.3mm and 1.8mm perforation patterns.



Technical Characteristics / Properties of Metal Tile
  PROPERTIES LAY-IN TILES CLIP-IN TILES
1. METAL STEEL / ALUMINIUM STEEL / ALUMINIUM
2. SURFACE PLAIN / PERFORATED PLAIN / PERFORATED
3. COATING PPGI COIL / POWDER-COATED PPGI COIL / POWDER-COATED
4. SIZE 595 x 595 mm 600 x 600 mm
5. THICKNESS STEEL (.5) & ALUMINIUM (.7) STEEL (.5) & ALUMINIUM (.7)
6. COLOURS ON - DEMAND ON - DEMAND
7. ZINC-COATING STEEL (80/120/180 GSM) STEEL (80/120/180 GSM)
8. GRID SYSTEM EXPOSED - GRID - SYSTEM CONCEALED - GRID - SYSTEM

BENEFITS

  • ➤ Fast & time saving installations
  • ➤ Demountable systems allow for quick access to large work areas above the ceiling for repair & maintenance purpose
  • ➤ Modification can be easily done after installation
  • ➤ Global compatibility and availability
  • ➤ Cost control
  • ➤ Much cleaner installation, as there is no use of water, paint, putty as in case of old conventional ceilings.

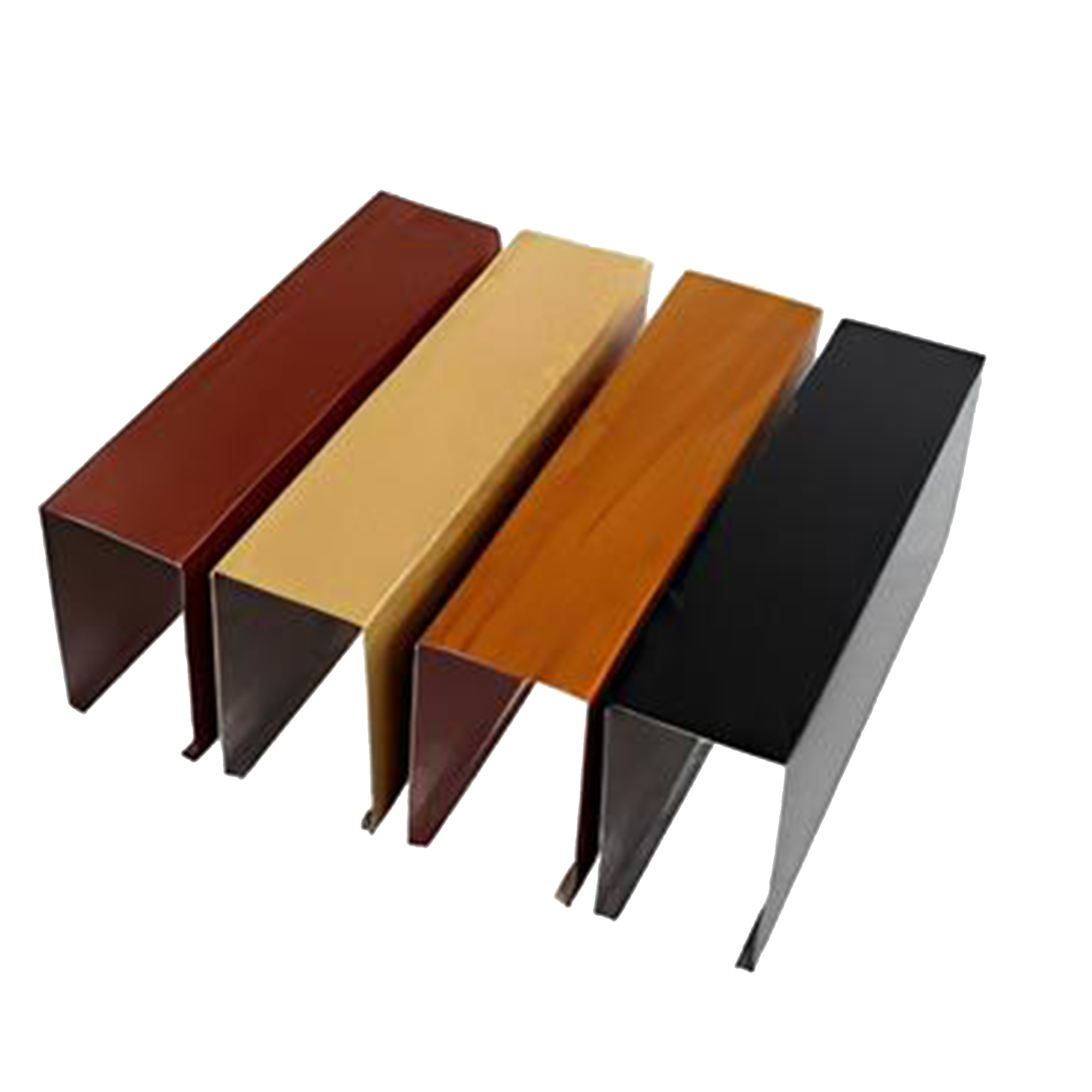

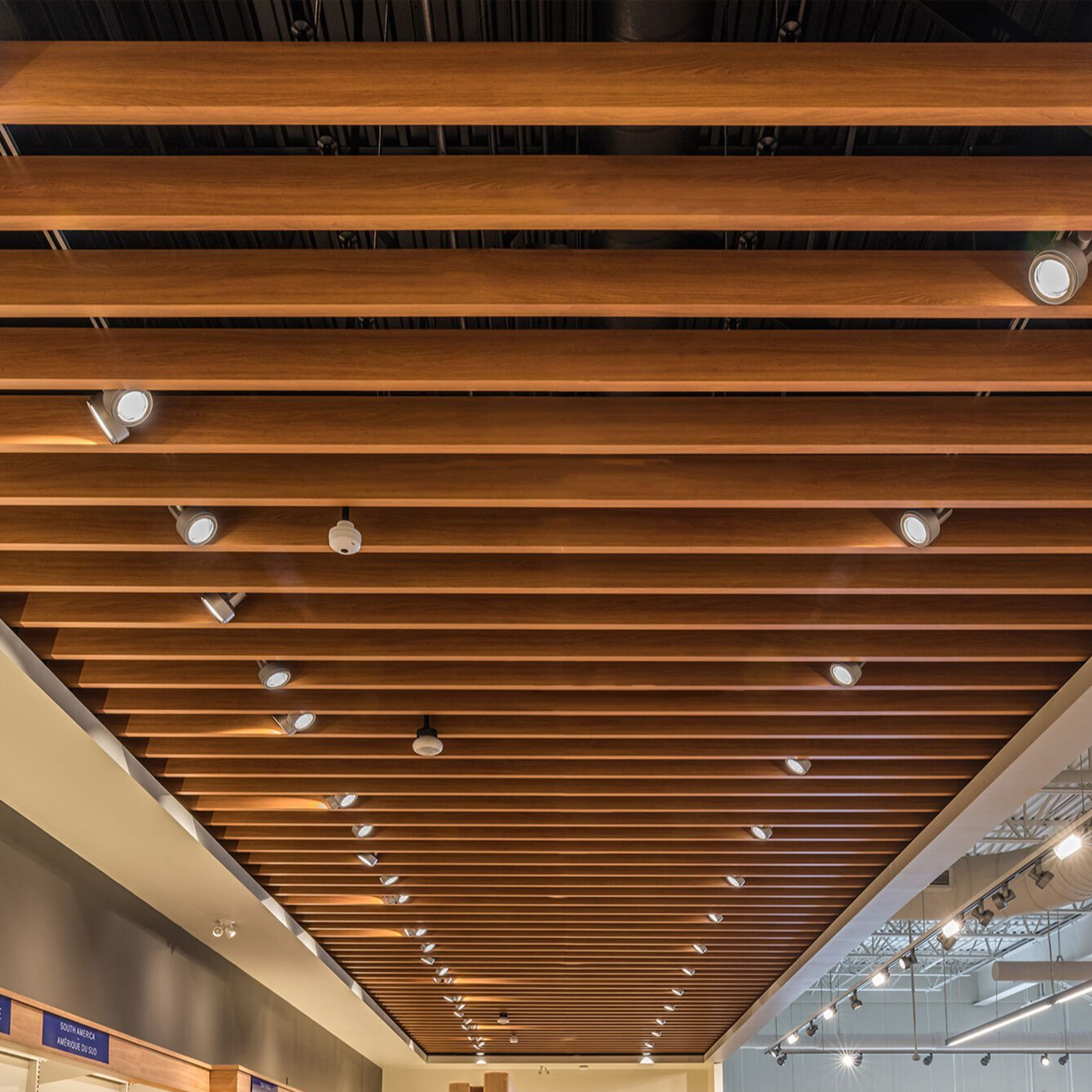

BAFFLE CEILING



Baffle Ceiling

The Baffle Ceiling is a curtain-type decoration ceiling. Strong stereoscopic effect, the line of space is clean, new, and unique with different colours. The style of decoration is clear, elegant, modern, and harmonious. Convenient to install and quick to remove.

Exhaust heat
Convenient for air flowage. It creates a comfortable interior space.

Beautiful Style
Elegant line makes the light even and gentle distribution.

Features of Baffle Ceiling:

  1. Shaped: Square / U-Shaped

  2. Material: Grade aluminium alloy / GP

  3. Installation System: Includes button-type carrier system and hook-on type carrier system

  4. Coating Types: Pre-coated and powder-coated

  5. Dimensions: Width 50-75mm, Height 75-150mm

All tiles are available in 2.5mm, 2.3mm, and 1.8mm perforation patterns.
